📐 Apps General Design Guide

This guide will help you quickly create a user-friendly app in Keboola. We cover essentials like theming, headers, storage integration, and more to streamline your setup. With clear, step-by-step instructions, you’ll be able to build an intuitive, visually appealing app.

Theming

There are two options for setting theming:

1. Keboola Apps Interface: Choose from predefined or custom themes directly in the Keboola interface. See more in the documentation.
2. Configuration File: Use the settings in the config.toml file, located in the .streamlit folder.

[theme]
font="sans serif"
textColor="#222529"
backgroundColor="#ffffff"
base="light"
primaryColor="#1f8fff"
secondaryBackgroundColor="#edf0f5"

Header

Logo

Store the logo PNG image in the /static/ repository folder (created automatically upon deployment in Keboola).

LOGO_IMAGE_PATH = os.path.join(os.path.dirname(__file__), 'static/keboola.png"')

Position the logo on the left and disable the full-screen view for the image.

st.image(LOGO_IMAGE_PATH)
hide_img_fs = '''
        <style>
        button[title="View fullscreen"]{
            visibility: hidden;}
        </style>
        '''
st.markdown(hide_img_fs, unsafe_allow_html=True)

Body

Set Up Caches

Set the ttl parameter based on your app’s needs.

# Fetching data
@st.cache_data(ttl=7200,show_spinner=False)

Info Panel

Note

Tip: Select the table you want to edit. If the data is not up to date, click the Reload Data button. The data freshness is displayed in the right corner.

Use st.info to provide helpful context or instructions to users.

st.info('Select the table you want to edit. If the data is not up to date, click the Reload Data button. The data freshness is displayed in the right corner.', icon="ℹ️")

Hide Anchor Links

To hide anchor links, add this function.

def hide_custom_anchor_link():
    st.markdown(
        """
        <style>
            /* Hide anchors directly inside custom HTML headers */
            h1 > a, h2 > a, h3 > a, h4 > a, h5 > a, h6 > a {
                display: none !important;
            }
            /* If the above doesn't work, it may be necessary to target by attribute if Streamlit adds them dynamically */
            [data-testid="stMarkdown"] h1 a, [data-testid="stMarkdown"] h3 a,[data-testid="stMarkdown"] h5 a,[data-testid="stMarkdown"] h2 a {
                display: none !important;
            }
        </style>
        """,
        unsafe_allow_html=True,
    )

Use st.expander

Use st.expander to keep your app simple and clean, with additional information inside.

# Expander with info about table
with st.expander("Table Info"):
    # Code continues …

Primary Buttons

Use the following code for primary buttons; secondary buttons can be simple st.buttons.

def ChangeButtonColour(widget_label, font_color, background_color, border_color):
    htmlstr = f"""
        <script>
            var elements = window.parent.document.querySelectorAll('button');
            for (var i = 0; i < elements.length; ++i) {{
                if (elements[i].innerText == '{widget_label}') {{
                    elements[i].style.color ='{font_color}';
                    elements[i].style.background = '{background_color}';
                    elements[i].style.borderColor = '{border_color}';
                }}
            }}
        </script>
        """
    components.html(f"{htmlstr}", height=0, width=0)

Example

ChangeButtonColour('Save Data', '#FFFFFF', '#1EC71E','#1EC71E')

Footer

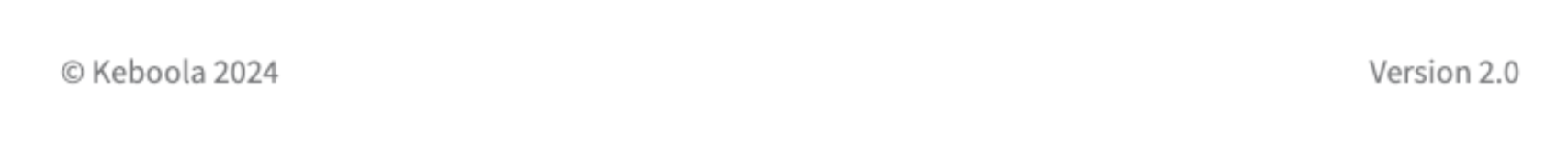

Here is an example of what a footer could look like.

Customize the footer with the code below.

def display_footer_section():
    # Inject custom CSS for alignment and style
    st.markdown("""
        <style>
            .footer {
                width: 100%;
                font-size: 14px;  /* Adjust font size as needed */
                color: #22252999;  /* Adjust text color as needed */
                padding: 10px 0;  /* Adjust padding as needed */
                display: flex;
                justify-content: space-between;
                align-items: center;
            }
            .footer p {
                margin: 0;  /* Removes default margin for p elements */
                padding: 0;  /* Ensures no additional padding is applied */
            }
        </style>
        <div class="footer">
            <p>(c) Keboola 2024</p>
            <p>Version 2.0</p>
        </div>
        """, unsafe_allow_html=True)

Keboola Storage Communication

Keboola offers multiple methods to interact with Storage. For simpler data access, consider using the “keboola-streamlit” package. Install it with:

pip install keboola-streamlit

Then, initialize your client in your Streamlit app:

import streamlit as st
from keboola_streamlit import KeboolaStreamlit

TOKEN = os.environ.get('KBC_TOKEN')
URL = os.environ.get('KBC_URL')
keboola = KeboolaStreamlit(root_url=URL, token=TOKEN)

This package provides simple functions such as keboola.read_table and keboola.write_table to easily read and write data.

For users with read-only workspaces or data warehouses like Snowflake, you can also use Python connectors. For example, you might initialize a Snowflake session with:

st.session_state['snowflake_session'] = keboola.snowflake_create_session_object()

And retrieve data with:

df_snowflake = keboola.snowflake_read_table(session=st.session_state['snowflake_session'], table_id='YOUR_SNOWFLAKE_TABLE_ID')

For more details, visit the official KeboolaStreamlit repository on GitHub: keboola/keboola_streamlit.

Authenticate Client

Environment variables kbc_token and kbc_url represent the project where the application is deployed. You do not need to specify them. To map data from a different project, configure the appropriate secrets.

# Constants
kbc_token = os.environ.get('KBC_TOKEN')
kbc_url = os.environ.get('KBC_URL')
# Initialize Client
client = Client(kbc_url, kbc_token)

Retrieve Data from Keboola

def get_dataframe(table_name):
    table_detail = client.tables.detail(table_name)
    client.tables.export_to_file(table_id = table_name, path_name='')
    list = client.tables.list()
    with open('./' + table_detail['name'], mode='rt', encoding='utf-8') as in_file:
        lazy_lines = (line.replace('\0', '') for line in in_file)
        reader = csv.reader(lazy_lines, lineterminator='\n')
    if os.path.exists('data.csv'):
        os.remove('data.csv')
    else:
        print("The file does not exist")
    os.rename(table_detail['name'], 'data.csv')
    df = pd.read_csv('data.csv')
    return df

Example

Retrieve a table from Keboola Storage.

if 'data' not in st.session_state:
        st.session_state['data'] = None
st.session_state['data'] = get_dataframe('in.c-bucketName.tableName')

Write Data to Keboola

def write_to_keboola(data, table_name, table_path, incremental):
    # Write the DataFrame to a CSV file with compression
    data.to_csv(table_path, index=False, compression='gzip')
    # Load the CSV file into Keboola, updating existing records
    client.tables.load(
        table_id=table_name,
        file_path=table_path,
        is_incremental=incremental
    )

Example

Write edited_data incrementally to Keboola Storage for faster updates. Incremental writing is faster than full load.

write_to_keboola(edited_data, 'in.c-bucketName.tableName', f'updated_data.csv.gz', 1)
